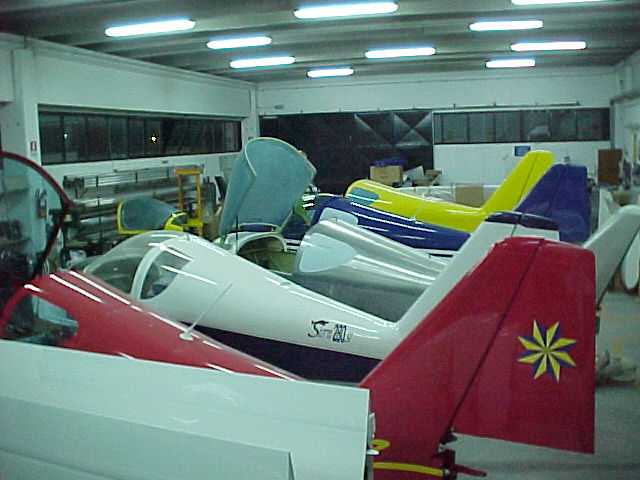

Probably the best Aircrafts in the World

Kits STORM

MORE THAN 1200 STORM are FLYING from 1989

      NO ONE   ACCIDENT due to STRUCTURAL FAILURE

      SOME STORM HAVE  UP TO 5000 HOURS IN TRAINING SCHOOLS





 FINAL Assy RG.pdf

 Fitting RG Main Gear.pdf

 Std Canopy Assy RG.pdf

 wing ribs install.pdf



STORM Kits Series are all metal Aircrafts with some parts as Engine cowling, fairings manufatured in Advanced Composite.

STORM  kits include all the parts needed to build a complete airframe. The builder must provide the engine, propeller, instruments, avionics and upholstery. All STORM kits are eligible for licensing in the Experimental Amateur-Built & LSA category. This means that the fabrication work we do on the kit parts is less than 50% of the total required to complete the aircraft and that at least 51% of the work remains for the kit builder.

      Sheet cutting, drilling, bending are performed in the factory with high precision CNC machines. The inserts, the bushings, the brackets are machined from solid  aeronautical aluminum. The chain of controls is in rigid tubes with uniballs joints, the connecting rods and levers are assembled with double bearings. The rudder is controlled with adjustable cables with turnbuckles. Steel parts are TIG welded and checked at the factory.

STORM  Price list

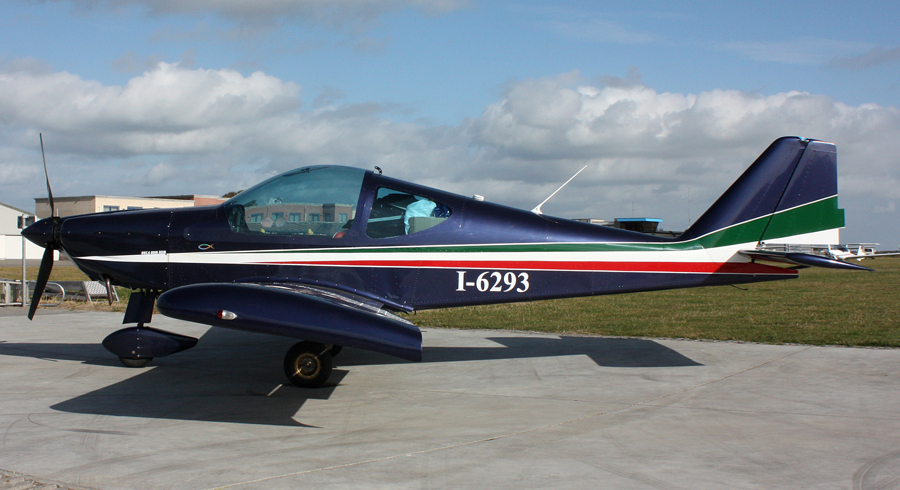

Storm R.G.

Storm Fury

Storm Century

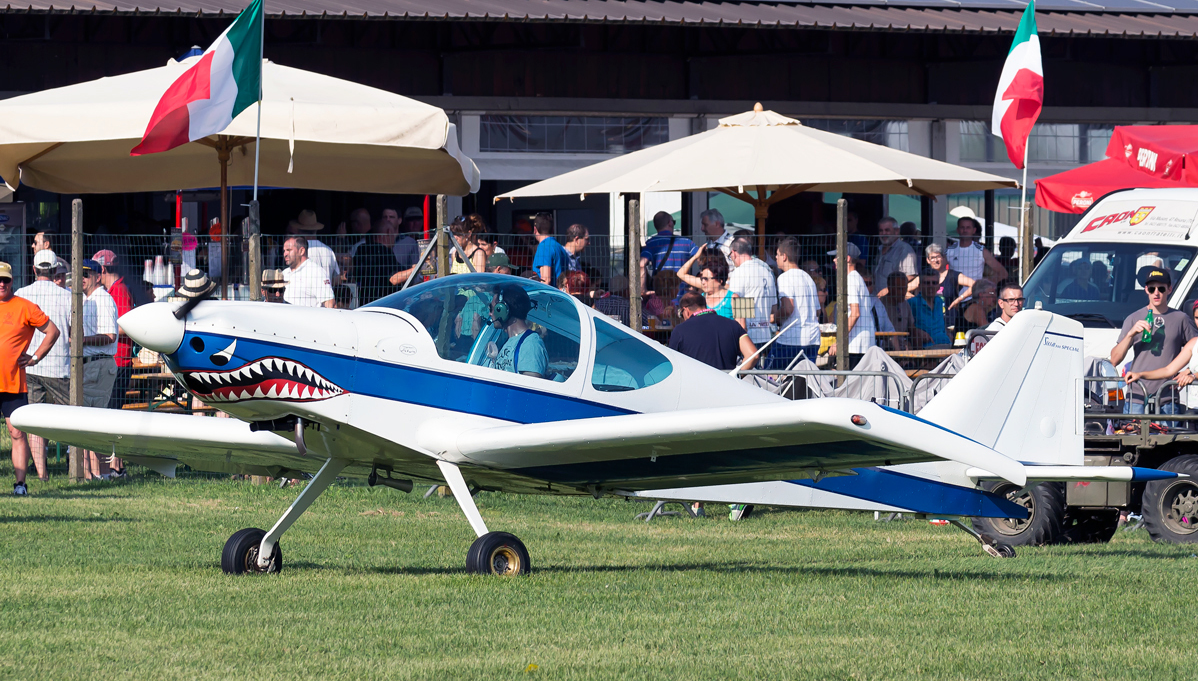

Storm Vantage

Rally

Kit 2     36 500,00     25 515,00          24 165,00          24 975,00 NO
Kit 3     45 625,00     33 345,00          31 995,00          32 805,00 NO
Advanced     52 750,00     38 475,00          37 125,00          37 935,00          40 230,00
Europe     69 250,00     43 470,00          42 120,00          42 930,00          40 230,00
Ready to Fly       105 480,00          83 880,00                82 800,00                83 520,00          89 000,00

Time Delivery Workings Days
Kit 2 45 30 30 30 NA
Kit 3 60 45 45 45 NA
Advanced 90 60 60 60 90
Europe 120 90 90 90 120
Dealers Price Parts Replacement FOB FACTORY
Aileron Kit (One)          789,00          789,00               789,00               789,00          840,00
1 Aileron Assembled NO paint       1 320,00       1 320,00            1 320,00            1 320,00       1 450,00
1 Back seatbelt            89,00            89,00 NA                 89,00 NA
Back seats          470,00          470,00               470,00               470,00 NA
Canopy       1 970,00       1 970,00            1 970,00            1 970,00       1 320,00
Control Stick        1 190,00       1 190,00            1 190,00            1 190,00          960,00
Cowl       1 440,00       1 320,00            1 160,00            1 320,00       1 230,00
Engine Lycoming 160 hp     26 700,00     26 700,00 NA          26 700,00 NA
Engine Mount 100Hp Sterable NW       3 640,00       2 320,00            2 320,00            2 320,00       2 380,00
Engine Mount 160Hp Sterable NW       3 450,00       2 210,00            2 210,00            2 210,00 NA
Engine Rotax 100 hp ULS     16 995,00     16 995,00          16 995,00          16 995,00     16 995,00
Flap Kit (One)          883,00          883,00               883,00               883,00          870,00
1 Flap Assembled NO paint       1 390,00       1 390,00            1 390,00            1 390,00       1 480,00
Fuselage Kit       7 000,00       7 000,00            6 900,00            6 400,00     13 800,00
Fuselage Assembled No paint     15 200,00     15 200,00          14 800,00          14 300,00     18 200,00
Gaz Piston  Door            96,00            96,00                 96,00                 96,00            54,00
Instrument Panel Alumium          210,00          210,00               210,00               210,00 NA
Instrument Panel composite          970,00          970,00               970,00               970,00 NA
Main Landing Gear Fix (One) NA          875,00               875,00               875,00          960,00
Landing Gear RG (One)       1 920,00 NA NA NA NA
Sterable Nose Gear Fix NA       1 140,00            1 140,00            1 140,00       1 280,00
Sterable Nose Gear RG       1 730,00 NA NA NA NA
Propeller 3 Blades G.Adjust       2 560,00       1 640,00            1 640,00            1 640,00       1 640,00
Seats (One)          590,00          590,00               590,00               590,00          620,00
Spinner and Plate          499,00          499,00               499,00               499,00          499,00
Stabilizer Kit       1 940,00       1 850,00            1 750,00            1 750,00       2 340,00
Stabilizer Assembled No paint       4 440,00       4 350,00            4 250,00            4 250,00       5 130,00
1 Tank 100 l Kit          980,00          980,00               980,00               980,00 NA
1 Tank 100 l Assembled NO paint       1 620,00       1 620,00            1 620,00            1 620,00 NA
1 Tank 160 l BUILT IN WING BUILT IN WING BUILT IN WING BUILT IN WING       1 220,00
Toe Brakes NA       1 120,00            1 120,00            1 120,00       1 120,00
Wheel pants (One) NA          285,00               285,00               285,00          285,00
1 Main Wheels with caliper          590,00          590,00               590,00               590,00          590,00
1 Nose Wheel          110,00          110,00               110,00               110,00          110,00
1 Wing Kit       6 750,00       4 100,00            4 100,00            4 100,00       5 760,00
1 Wing Assembled No paint     12 200,00       8 900,00            8 900,00            8 900,00       9 450,00
1 Winglet Tip          390,00          390,00               390,00               390,00          480,00

Retractable Gear version:

The main landing gear is made by two supporting beams hinged around the end of two metal leaf springs house inside the fuselage. This arrangement still allows, in a retractable gear, the use of the spring leaf for the landing shock absorption, preserving therefore all this advantage (simplicity, reliability, maintainability). The main legs are simply rotate by two oleo pneumatic actuators.The front wheel is integrated with a high efficient oleo-pneumatic shock absorber. Thesteering and the braking system are unchanged. When the landing gear is down the torque-arms are mechanically blocked, preventing the rotation unless driven by the actuators. An electrical compressor gives the necessary pressure to the pneumatic system headed up by two spherical tanks. One tanks gives the necessary compressed air in case of system failure. In any case the gravity assures the landing gear extension. The panel indicators (up-and-locked, down-and-locked) comply with FAR requirements.



 Your Storm Kit

KIT 2

KIT 3

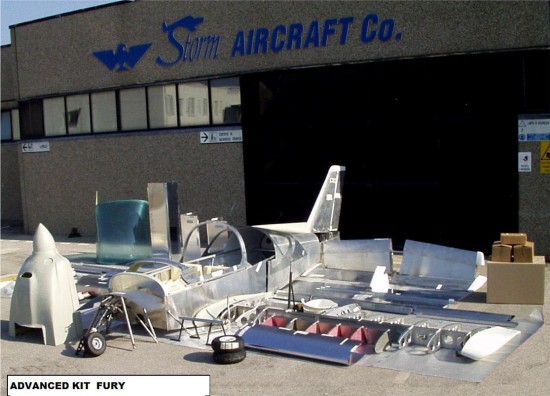

 ADVANCED

Europe Kit











Alumium sheets drilled & bended CNC

Y

Y

Y

Y

Control Rods Bearings

Y

Y

Y

Y

Ctrl Rods and termilnal ends

Y

Y

Y

Y

Rudder cables

Y

Y

Y

Y

Composite Fairing Wing/fuselage

Y

Y

Y

Y

Composite Rudder tip

Y

Y

Y

Y

Lower Composite Rudder tip

Y

Y

Y

Y

Composite Fin tip

Y

Y

Y

Y

Composite instrument panel fairing

Y

Y

Y

Y

 Aluminium instrument panel

Y







Composite instrument panel

NO

Y

Y

Y

Composite wing Tip Mod. Standard

Y







Composite Wing Tips Mod. Winglet

Y

Y

Y

Y

Fairing Empenages / Fuselage

Y

Y

Y

Y

Composite Tips Stabilizer

Y

Y

Y

Y

Wheels 5''

Y

Y

Y

Y

Main Landing Retractable gear

Y

Y

Y

Y

Retractable nose wheel

Y

Y

Y

Y

Steerable nose wheel

Y

Y

Y

Y

Control Stick welded and assembled

Y

Y

Y

Y

Pedals system welded and assembled

Y

Y

Y

Y

Control Flaps system welded and assembled

Y

Y

Y

Y

Rivets Avex

Y

Y

Y

Y

Solid Rivets

Y

Y

Y

Y

Bolts & nuts

Y

Y

Y

Y

Insert nuts

Y

Y

Y

Y

Anchor nuts

Y

Y

Y

Y

Trottle system

Y

Y

Y

Y

Hydraulic pump,pistons & Retractable Hardware

Y

Y

Y

Y

Hydraulic  Landing Gear Dampers

NO

Y

Y

Y

Carbon windshield frame

NO

Y

Y

Y

Windshield Lock system

Y

Y

Y

Y

Windshield aluminium frame

Y

Y

Y

Y

Preformed windshield and side windows transparent

Y

Y





Preformed windshield and side windows blu tinted

NO

Y

Y

Y

Raw preformed FW Seats

NO

Y

Y

Y

Engine cowling Standard

Y

Y

Y

Y

Engine ring and shock absorber Rotax

NO

Y

Y

Y

Engine mount for Lycoming

OPTION

OPTION

OPTION

OPTION

Wing Spars fully assembled

NO

NO

Y

Y

Wing box fully assembled

NO

NO

Y

Y

Stabilizer Spar fully assembled

NO

NO

Y

Y

3rd Section Fuselage & Fin Assembled

NO

NO

Y

Y

Fuselage fully assembled

NO

NO

NO

Y

Wings fully assembled

NO

NO

NO

Y

Enpenages fully assembled

NO

NO

NO

Y

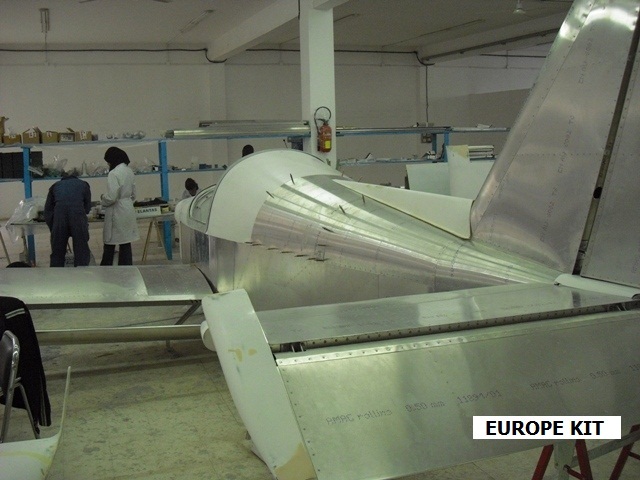

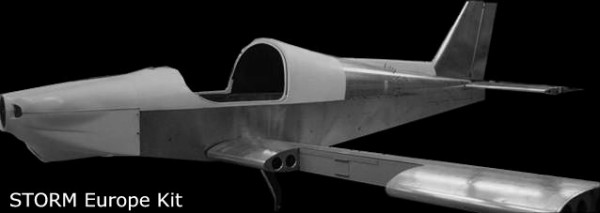

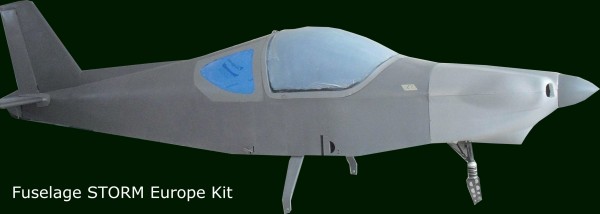

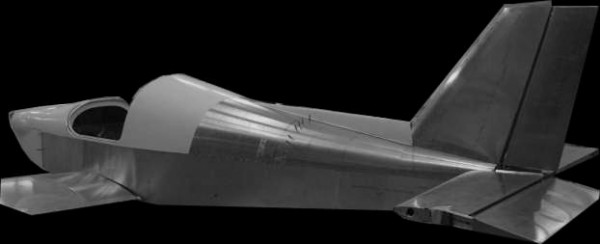

EUROPE Quick built KIT STORM

The Europe Kit Storm Match with the 51% Rules

Canopy, Windows, Composite wing fairings, Elevator  and Rudder fairings, Fuselage and Wings connection composite fairings, Wheels pants, Seat belts, Composite Instrument Panel, Engine mount, Graze Seats, Leading Edge Tanks,  5" Wheels and brakes are included in the kit.



KITS hours Storm RG Fury ASSEMBLY FROM STANDARD KIT





FRAME

WINGS

HOURS

Leverages Assembly

4

Wing Spar Assembly RH +BELCRANK INSTALL

8

Wing Spar Assembly RH +BELCRANK INSTALL

8

RH Wing Assembly

35

LH Wing Assembly

35

***Wing tank RH assembly

12

***Wing tank LH assembly

12

RH Aileron Assembly

8

LH Aileron Assembly

8

RH Flap Assembly

6

LH Flap Assembly

6

Flaps and Ailerons hinges Assembly

5

Flaps and Ailerons install on wings

6

Install Retractable Gear

36

TOTAL LH & RH WINGS  ASSEMBLY

189


STABILIZER

HOURS

Spar Assembly

6

Stabilizer Assembly

28

Trim Assembly

4

TOTAL STABILIZER ASSEMBLY

38


FIN & RUDDER

HOURS

FIN ASSEMBLY

24

RUDDER ASSEMBLY

12

TOTAL FIN & RUDDER ASSEMBLY

36


WING BOX ASSEMBLY

8


MAIN LANDING SUPPORT ASSEMBLY

7


FUSELAGE 1° SECTION

HOURS

TOTAL ASSEMBLY FUSELAGE 1 st Section

58


FUSELAGE 2° SECTION

HOURS

ASSEMBLY BULKHEAD "B" "C"

5

FLOOR ASSEMBLY  2°-3° SECTION

6

Leverages 2

3

 ASSEMBLY  2° SECTION

19

TOTAL ASSEMBLY  2° SECTION

33


FINAL ASSEMBLY FUSELAGE
FINAL ASSEMBLY FUSELAGE 1° e 2° SECTIONS

22

INSTALL FLAP SYSTEM

5

SEATS FLOOR COVER AND OTHER

12

INSTALL CABLES AND ELECTRIC WIRE

6

INSTALL LEVERAGES AND CONTROL RODS

8

STABILIZER ALIGNEMENT DRILL AND BOLT

5

FIN AND RUDDER INSTALL AND ALINGNEMENT

4

INSTALL RUDDER PEDALS

2

INSTALL CONTROL STICK

3

INSTALL CANOPY , WINDOWS AND LOCKS

11

TOTAL FINAL ASSEMBLY FUSELAGE

78


TOTAL FRAME ASSEMBLY HOURS

447



ENGINE/INST. PANEL /INTERIORS FINAL ASSEMBLY
                           PAINTING


DESCRIPTION ACTIVITY

Hrs

Nr Workers

Tot Hours

1

ASSEMBLY OFF-LINE









Rudder Pedal assy

6

1

6



Control Stick Assy

7

1

7



Battery Support

3

1

3



Canopy FINISHING

4

1

4



Heat box system

2

1

2



Oil tank Support

1

1

1



Brake Station install

7

1

7



Hydraulics Landing Gear completion and tests

23

1

23



Prepare interiors panels and install

6

1

6



Prepare sound prof and carpets and install

4

1

4



TOTAL:





63



2

ENGINE INSTALLATION




Engine mount install and alignement

2,5

2

5



Engine  install

8

2

16



Building and welding Exhaust

32

1

32



PROPELLER and accessories Install

18

1

18



Prepare Spinner

3

1

3



Fuel Lines

12

1

12



Oil lines

4

1

4



Water cooling install

7

1

7



Cabin Heat

3

1

3



Airbox install

6

1

6



Prepare Instrument panel wiring + instruments

48

1

48



Prepare Engine cooling NACA- Air filter box

25

1

25



TOTAL:





179











3

ELECTRIC PLANT









Electric plant

29

1

29



electric wiring instrument panel final assembly

14

1

14



TOTAL:





43











4

EQUIPMENT









Rudder pedal install and Adjust

4

2

8



Ctrl Stick Install And Adjust  elevator degree

4

2

8



TRIM instal and adjust check degree

6

1

6



Brake System instatall and control

7

1

7



Check brakes and Wheels

3

1

3



Canopy closing check

4

1

4



Install Rubber gasket canopy and control

1

1

1



Install interiors

5

1

5



Door Wheels check open and closed

7

1

7



Install fuel indicators and control

9

1

9



Install Trottle adjust and control

4

1

4



Install Instrument panel and check

3

2

6



Install console

2

1

2



install Pitot Connections

1

1

1



Install Strobe light in Fin and Check

4

1

4



Install Antenna

2

1

2



Install fuel lines from wings tanks.

6

2

12



TOTAL:





89











5

WINGS









Prepare Wing Tips

9

1

9



Prepare Wing fairings

4

1

4



Install Wing tips

3

2

6



Install wing strobe lights

3

1

3



Install Pitot

1

1

1



Connect control Rods for commands and check

4

2

8



TOTAL:





31











6

FINAL OPERATIONS









Adjust microswitch of Retractable Gear  Check Allarm and all system

14

1

14



Install Wings and check Ailerons and Flaps degree

11

2

22



Install Empennage and check

8

2

16



TOTAL:





52











7

 FINAL ASSEMBLY FOR  TEST FLIGHT









Desassemble wings and empennages

5

2

10



Carry & Transport Aircraft  to the Airport

8

3

24



Engine and prop check

2,5

2

5



Assemble wings empennage to Airport and check all again

8

3

24



TOTAL:





63













TOTAL

















1

ASSEMBLY OFF-LINE





63

2

ENGINE INSTALLATION





179

3

ELECTRIC PLANT





43

4

EQUIPMENT





89

5

WINGS





31

6

FINAL OPERATIONS





52

7

FLIGHT TEST





63



FINAL ASSEMBLY





520























RESUME

HOURS







TOTAL FRAME ASSEMBLY HOURS

447

44,04

% of Total



PAINTING Standard

48

4,73

% of Total



FINAL ASSEMBLY

520

51,23

% of Total



TOTAL  FOR READY TO FLIGHT

1015
