StormAgri 915



Professional agricultural fumigation using liquids.







  FEATURES:

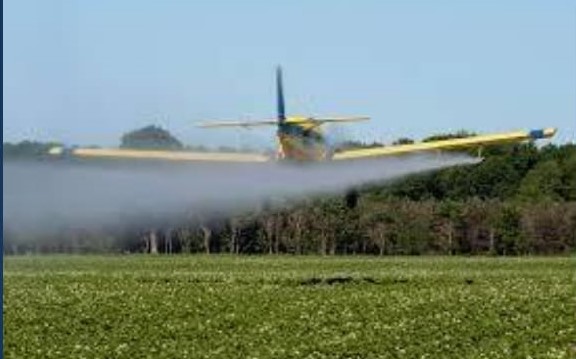

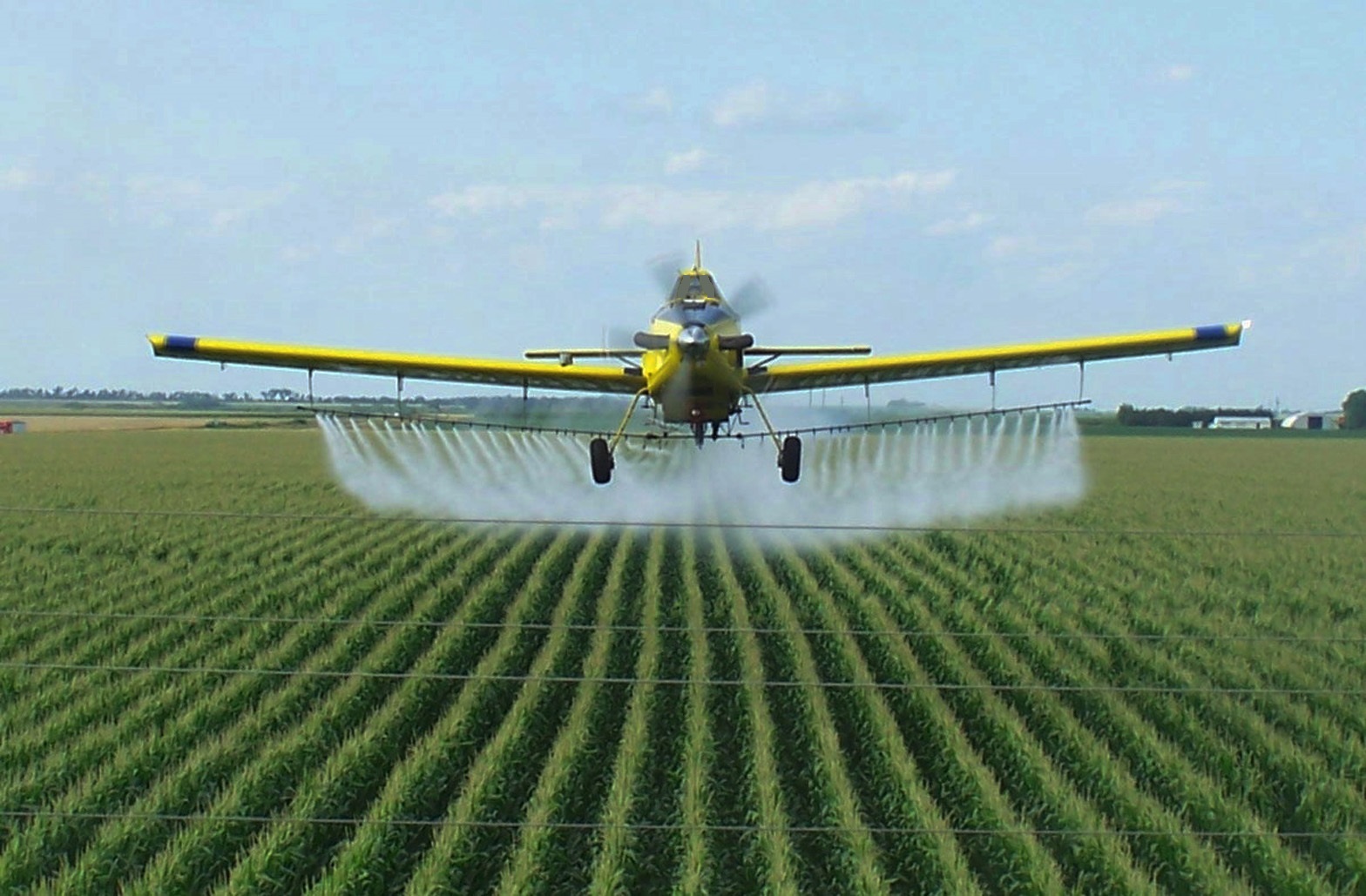

               The Storm AGRI is a professional aircraft designed for agricultural air spraying. It can spray low and ultra low volumes of liquid.

It can also be used as a two-seat side by side aircraft with dual controls.



              The spraying boom has an 9 meter range, with a 19 meter spray pass, plus overlap. The cruise speed (over 280 km/h  without sprying system installed) and autonomy (over 4 hours) to allow travel over 800/1000 km using gasoline-powered cars.



 The boom can be folded quickly and easily, the wings can be removed in a short time and the plane can also be transported by trailer. The STORM AGRI is equipped with a ULV tank capacity of 250 liters.



  • STANDARD EQUIPMENT:

·        Anti corrosion Aluminum frame.

·         Strong landing gear.

·         Specialty Air Hawk Tire .

·         Centrifugally cast Wheels with internal Hydraulic caliper

·         3 blades Propeller Ground adjustable carbon fiber with nickel cadmium leading edges protection.

·         Flaps actuator with led indicator.

·         Hydraulic wheel brakes with parking.

·         Electric elevator trim with led indicator.

·         Flaps actuator with led indicator.

·         Engine: Rotax   915 IS/iSc 141 Hp

·         100 liters Wing fuel tank (Option 160 Lt tanks)  with 2 level indicators.

·         High strong quality seat covers.

·         250 liters  ULV product tank Rf. Engine power.

·         Complete system  Micronair for liquid crop spray with boom of 9 mt

·         Pressure regulator valve on cockpit  Micronair

·         Emergency actuator valve for spray product.

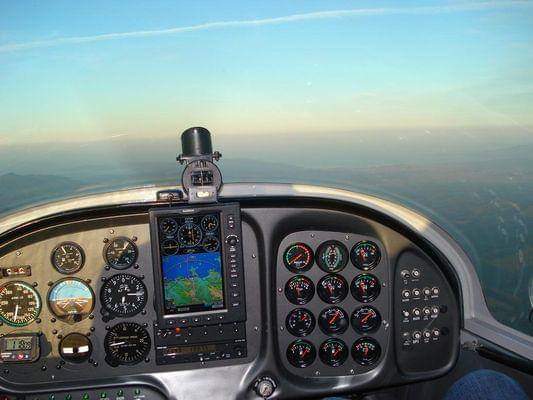

  • INSTRUMENTS:





·         Airspeed Indicator

·         Vertical Speed indicator.

·         Altimeter.

·         Compass.

·         Engine tachometer.

·         2 Cylinder head temperature.

·         Oil temperature.

·         Oil pressure.

·         Fuel pressure

·         2 Fuel level indicator

·         Hour meter.

·         InterCom VHF

·         Transponder

·         Flaps indicator position

·         Elevator Trim indicator

·         Power plug 12v

·         Micronair Spraying system pressure gauge.

·         GPS Farm Navigator.



  • OPTIONS:

 Glass Cokpit:  2 Screen 10”  Call

 For Autopilot 2 Axis : Add $.12.760,00

 For Aircraft Recover Parachute: Add $. 14.800,00



  • DIMENSIONS AND WEIGHTS

·                          Wing Span -------------------------             9,20mt.

·                        Length ------------------------------             7,15mt.

·                        Height -------------------------------            2,25mt.

·                        Cabin Width ------------------------           1,1mt.

·                        Boom width ------------------------            9 mt.

·                        Max. Take --------------------------             850Kg.

·                        Empty Weight----------------------            390Kg.

·                        Carrying------------------------------           460Kg.

  • FEATURES (Standard conditions

·        Spraying speed --------------------- ---         160 /180 Km/h

·         VNE (boom deployed) ---------------             220 km/h

·         VNE  Without  Sprying  System   ---            320 km/h

·         Vs ------------------------------------------              65 Km/h

·         Rate of climb (750Kg) -----------------            900F/min.

·         Take off run ----------------------------              220 mt.

·         Landing run -----------------------------             180 mt

·         Consumption when spraying -------         32 – 38 lt//h.

·         Flight endurance -----------------------      3 H  Standard Tanks   -  4.30 H  Long range tanks

·         Service ceiling : -------------------------         23000 feets



  • BENEFITS OF THE AGRICULTURAL AIRCRAFT STORM AGRI

·         Auto - Electric spraying system allows measuring without starting the engine

·         “Surgical” cut at the end of the row (no trail)

·         Low vortexes and disturbance

·         Electric diaphragm pumps with a nominal pressure MicronAir

·         Cabin system pressure control valve

·         19 meter swath pass with overlap

·         Range: 3 Hectares per minute



  • COST OF OPERATION:

 Aircraft depreciation at 5000 hr -------------       $. 36.40 per  hour

 Engine & Prop replace at 1200 h -------------      $. 35.80 per hour

 Aircraft maintenance --------------------------        $.   5.40 per hour

 Fuel (at 1.10 $. per liter) ----------------------        $. 41.80 pr hour



  • Cost total per hour of flight --------   $. 119.40



                                                          Price  ex Factory:  172. K.$





Aircraft STORM Agri Always at your service



     Realize the highest success at lowest costs when flying with one of the safest aircrafts on the market. STORM Agri adaptable, agile, nearly every situation; a medical assignment, Called in the duty of a shark, pipe and power lining, border control, agricultural crop spraying or military missions..etc.





Micronair AU5000 Atomiser

Micronair AU5000 Atomiser - Micronair AU5000 Atomiser - Micronair AU5000 Atomiser - Micronair AU5000 Atomiser - Micronair AU5000 Atomiser - Micronair AU5000 Atomiser - Micronair AU5000 Atomiser - AU5000 on a heli

A result of decades of experience in the development of rotary atomisers for agricultural aircraft, the AU5000 atomiser has been precision engineered from proven chemical resistant materials and uses a rotating woven wire gauze cylinder to produce spray droplets.

This technique ensures a narrow, controlled spectrum of droplet sizes for the most efficient and economical application of a wide range of chemicals at low spray volumes to maximise productivity and reduce costs.

The atomiser is driven by the airflow from the aircraft by three highly efficient fan blades. These are adjustable in pitch, enabling the rotational speed to be varied as required. The size of the spray droplets is determined by the rotational speed of the gauze. The atomiser can therefore be set to produce the correct droplet size for a particular operation by a simple adjustment of the blade angle.

Versatile and simple to install

With flow rates of up to 23 litres per minute, the same AU5000 installation to be used for a wide range of output rates from ultra low volume (ULV) to conventional application at 20 – 50 litres/hectare.

The light weight and low drag of AU5000 atomisers enables them to be fitted directly onto the standard spray booms of most agricultural aircraft without any structural modification. Alternatively, quick-change replacement boom kits are available for popular types of aircraft and special installation kits can be supplied for some non-agricultural types.

Every atomiser is supplied with a complete installation kit including a mounting clamp with shock bushes for anti-vibration, diaphragm check valve and secondary valve for instantaneous shut-off, variable restrictor unit (VRU) for simple “dial-up” flow control and all necessary hoses and fittings.

Precise flow control

The flow to each atomiser is controlled by a variable restrictor unit (VRU). This provides finger-tip control of the flow by the simple turn of a knob and eliminates the need to dismantle or change individual restrictor orifices.

VRUs are supplied with fittings and adaptors for the standard nozzle outlets found on most booms. This eliminates the need for any special pipework or modification of the boom.

Overall flow from the aircraft is regulated by the boom pressure in exactly the same way as a conventional spray system.

Optional Atomiser RPM to GPS Interface

The AU5000 is compatible with the optional Micronair RPM Indicator to GPS Interface which measures the rotational speed of up to ten atomisers and transfers this data to any compatible* GPS guidance system via a serial (RS-232) port. Atomiser RPM is shown on the GPS display screen and can also be included in the GPS log file. Logged RPM can be reviewed after flight alongside other application parameters using the GPS log replay software.

*Consult your GPS system supplier for compatibility details. Both the GPS processor and the PC based log replay system must be running the necessary software. The GPS system unit must have one free serial port.

Micronair AU5000LD and AU5000LG Atomiser Assemblies

The Micronair AU5000 can also be fitted with the LD (stacked disc) or LG (mini gauze) interchangeable atomiser assemblies that permit the use of larger spray droplets compared with the standard gauze.

Benefits:

  •       Low volume spray means increased productivity and reduced costs
  •     Controlled droplet size for better chemical efficiency
  •     Drift control through droplet size selection
  •     Wide flow range
  •     Wind driven to eliminate the need for auxiliary power
  •     Easy to clean

 RPM Indicator to GPS Interface

RPM Indicator to GPS Interface - RPM Indicator to GPS InterfaceRPM Indicator to GPS Interface - RPM Indicator to GPS InterfaceRPM Indicator to GPS Interface - TransducerRPM Indicator to GPS Interface - RPM DisplayedRPM Indicator to GPS Interface - Atomiser RPMs warning

       The Micronair RPM Indicator to GPS Interface measures the rotational speed of up to ten atomisers and transfers this data to any compatible* GPS guidance system via a serial (RS-232) port. Atomiser RPM is shown on the GPS display screen and can also be included in the GPS log file. Logged RPM can be reviewed after flight alongside other application parameters using the GPS log replay software.

  • Monitor the rotational speed of all atomisers to ensure the correct spray droplet size.
  • Avoid the risk of atomisers running at an excessive speed.
  • Create a permanent log of atomiser RPM throughout each job. The web based Micronair Droplet Size Calculator can be used to estimate the spray droplet size at any point in the area sprayed.
  • Compatible with Micronair AU4000, AU5000 & AU7000 wind-driven atomisers and AU6539 electric atomisers.

*Consult your GPS system supplier for compatibility details. Both the GPS processor and the PC based log replay system must be running the necessary software. The GPS system unit must have one free serial port.

 Suggested Agricultural GPS

 Tracmap Generic logo_transparent_greenwhite     AG-NAV Inc.

GUIDANCE AIDS FOR PILOTS

WATCH THE LIGHTBAR IN ACTION   https://youtu.be/GAZmtWyuVQ0
